SEMPA

Fire Fighting Pumps (NFPA 20)

Capacity: 2500 m³/h
Head: 180 m
Frequency: Three-phase 50 Hz - 60 Hz*
Fluid Temperature: From 0 °C to + 60 °C
Maximum Working Pressure: 16 - 20 bar

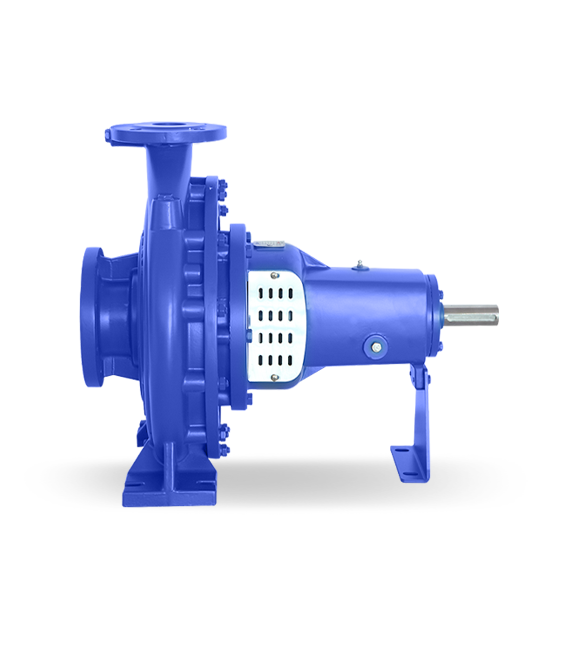

TKF Series Single Stage End Suction Pumps

Discharge Flange: DN 32 – DN 250
Capacity: up to 1700 m³/h
Head: up to 100 m
Working Temperature: From -25 ˚C to +140 ˚C*
Casing Pressure (Pmax) : 10 bar (16 bar)*

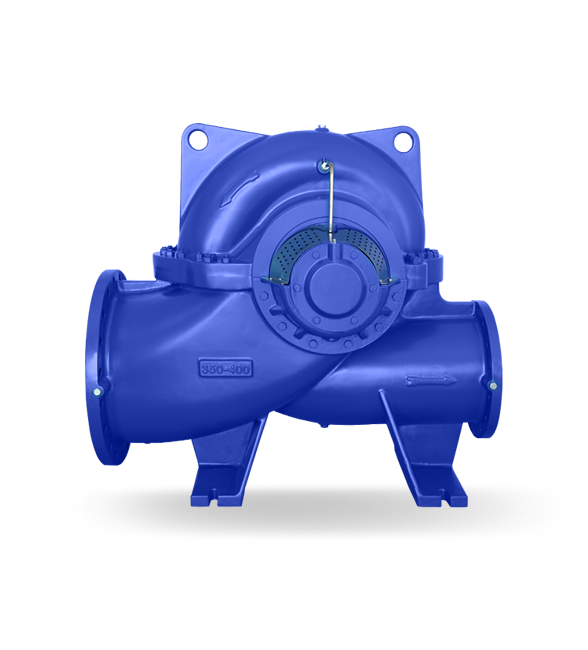

SCE Series Split Case Pumps

Discharge Flange: DN 65 – DN 600
Capacity: up to 6000 m³/h
Head: up to 180 m
Working Temperature: From -20 °C to + 110 °C*
Casing Pressure (Pmax): 16 bar - 25 bar*

ARS Series Multi Stage Pumps

Discharge Flange : DN 25 – DN 250
Capacity : up to 1000 m³/h
Head : up to 600 m
Working Temperature : From -25 °C to + 140 °C*
Casing Pressure (Pmax) : 30 bar (63 bar)*
Design Type : BB4

TKF-M Series Monoblock Pumps

Discharge Flange : DN 32 – DN 150
Capacity : up to 500 m³/h
Head : up to 100 m
Working Temperature : From -25 ˚C to +140 ˚C*
Casing Pressure (Pmax) : 10 bar (16 bar)*

SP Series Booster Pumps

Flow Rate : 56 m³/h
Pressure : 150 m
Frequency : Three-phase 50 Hz - 60 Hz*
Fluid Temperature : From 0 ˚C to + 60 ˚C
Maximum Body Pressure : 10 bar (16 bar)

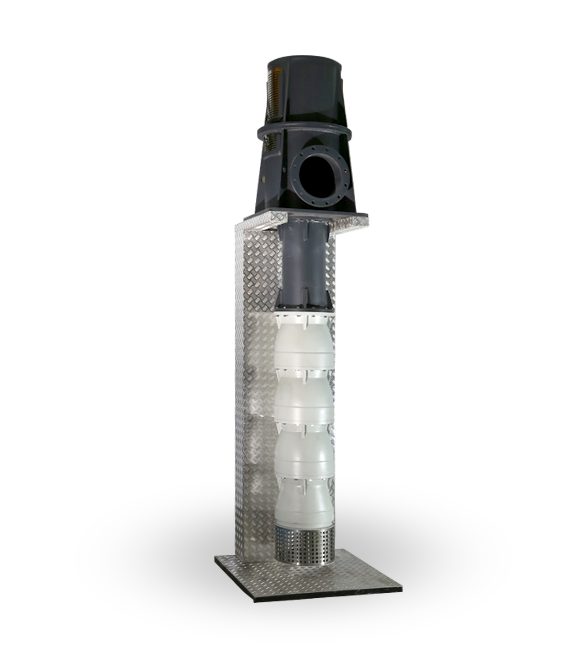

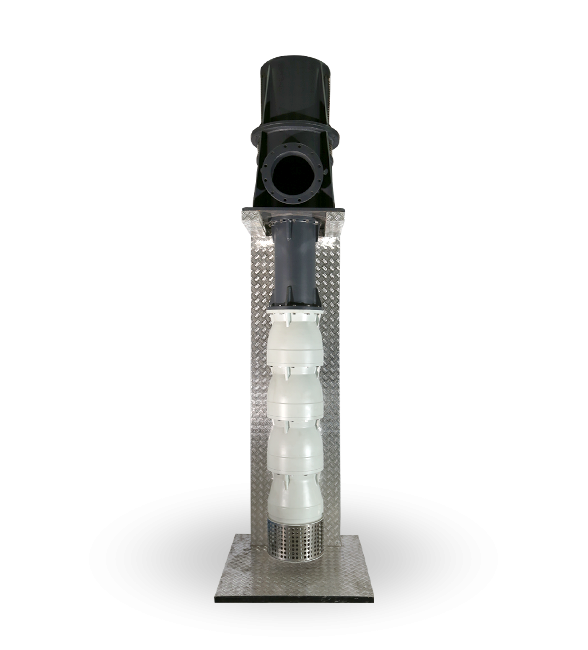

SVDP Series Vertical Turbine Pumps

Capacity : up to 30.000 m³ / h
Head : up to 600 m
Working Temperature : from -25 ˚C to + 140 ˚C
Casing Pressure (Pmax) : 63 bar

TKF-I Series In-Line Pumps

Discharge Flange : DN 65 – DN 250
Capacity : up to 500 m³/h
Head : up to 100 m
Working Temperature : From -25 ˚C to +140 ˚C*
Casing Pressure (Pmax) : 10 bar (16 bar)*

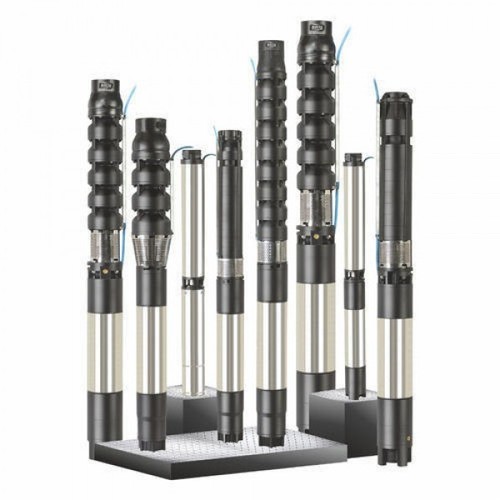

Deep Well Submersible Pumps

Discharge Diameter: DN 50 – DN 250
Capacity: up to 375 m³/h
Head : up to 250 m
Up to 250 HP
100 HP - 250 HP Three phase
Water lubricated.
Voltage tolerance ± % 10
Max. water temperature 25° C
Speed 2900 rpm
Protection IP58
Rewindable class B insulation
