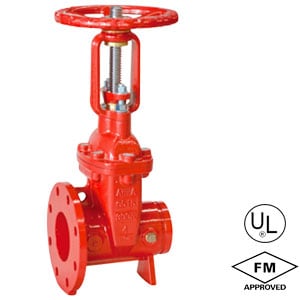

OS&Y Gate Valve (Flanged, Grooved etc)
-
Certificate: UL Listed/ FM Approved
-
Standard: BS 5163, UL 262/ AWWA C515
-
Connection: Flanged
-
Temperature: 0°C to 100°C
-
W. pressure: PN 16/ 300 psi (2.07 Mpa)
- Certificate: UL Listed/ FM Approved
- Standard: BS 5163, UL 262/ AWWA C515
- Connection: Flanged
- Temperature: 0°C to 100°C
- W. pressure: PN 16/ 300 psi (2.07 Mpa)
Swing Check /Non-Return Valve
-
Certificate: UL Listed/ FM Approved
-
Standard: EN 1074-3, UL 312/ AWWA C508
-
Connection: Flanged as BS EN 1092-2/ Flanged as ASME B16.1
-
Temperature: 0°C to 100°C
-
W. pressure: PN 16/ 300 psi (2.07 Mpa )
- Certificate: UL Listed/ FM Approved
- Standard: EN 1074-3, UL 312/ AWWA C508
- Connection: Flanged as BS EN 1092-2/ Flanged as ASME B16.1
- Temperature: 0°C to 100°C
- W. pressure: PN 16/ 300 psi (2.07 Mpa )
Butterfly valve with Supervisory Option
-
Certificate: UL Listed/ FM Approved
-
Standard: EN 593/ BS 5155/UL 1091/ MSS SP-67
-
Indicator: Flag type position indicator
-
Temperature: 0°C to 100°C
-
W. pressure: PN 16/ 300 psi (2.07 MPa)
- Certificate: UL Listed/ FM Approved
- Standard: EN 593/ BS 5155/UL 1091/ MSS SP-67
- Indicator: Flag type position indicator
- Temperature: 0°C to 100°C
- W. pressure: PN 16/ 300 psi (2.07 MPa)

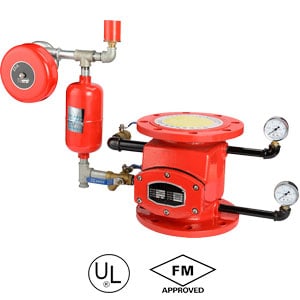

Alarm Check Valve Assembly
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 193
- Connection: Flanged as ANSI B16.1/ EN 1092-2
- Test: Factory hydro test 350 psi (2.4 MPa)
- Temperature: 4°C to 70°C
- W. pressure: 175/ 300 psi (1.21/ 2.07 MPa)
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 193
- Connection: Flanged as ANSI B16.1/ EN 1092-2
- Test: Factory hydro test 350 psi (2.4 MPa)
- Temperature: 4°C to 70°C
- W. pressure: 175/ 300 psi (1.21/ 2.07 MPa)
Pressure Switch
- Certificate: UL Listed/ FM Approved
- Standard: UL 753/ FM3132
- Connection: 1/2″ NPT male
- Temperature: -40°C to 71°C
- Certificate: UL Listed/ FM Approved
- Standard: UL 753/ FM3132
- Connection: 1/2″ NPT male
- Temperature: -40°C to 71°C

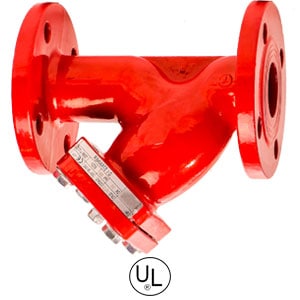

Y Strainer
- Certificate: UL Listed
- Connection: Flanged as EN 1092-2/ Flanged as ANSI B16.1
- Temperature: 0°C to 100°C
- W. pressure: PN 16/ 300 psi (2.07 Mpa)
- Certificate: UL Listed
- Connection: Flanged as EN 1092-2/ Flanged as ANSI B16.1
- Temperature: 0°C to 100°C
- W. pressure: PN 16/ 300 psi (2.07 Mpa)
Fire Pump Flow meter
- Certificate: FM/ LPCB Approved
- Size: 2″ to 8″
- Connection: Wafer flange/ grooved
- W. pressure: 290 psi (2.0 MPa)
- Certificate: FM/ LPCB Approved
- Size: 2″ to 8″
- Connection: Wafer flange/ grooved
- W. pressure: 290 psi (2.0 MPa)
Air release valve
- Certificate: UL Listed/ FM Approved
- Standard: UL Subject 2573
- Connection: NPT/ BSPT
- Temperature: 0°C to 90°C
- Certificate: UL Listed/ FM Approved
- Standard: UL Subject 2573
- Connection: NPT/ BSPT
- Temperature: 0°C to 90°C
Brass Ball Valve
- Certificate: UL Listed
- Connection: Female thread, NPT/ BSPT
- Temperature: -30°C to 120°C
- W. pressure: Class 150: WOG 600 psi & SWP 150 psi
- Certificate: UL Listed
- Connection: Female thread, NPT/ BSPT
- Temperature: -30°C to 120°C
- W. pressure: Class 150: WOG 600 psi & SWP 150 psi
Test and drain valve
- Certificate: UL Listed/ FM Approved
- Connection: Female thread, NPT or BSPT/ grooved
- Hydro test: 350 psi
- Temperature: 0°C to 100°C
- W. pressure: 175 psi
- Certificate: UL Listed/ FM Approved
- Connection: Female thread, NPT or BSPT/ grooved
- Hydro test: 350 psi
- Temperature: 0°C to 100°C
- W. pressure: 175 psi
Water flow indicator
- Certificate: UL Listed/ FM Approved
- Contact ratings: 8A at 125/250 VAC, 3A at 24VDC, 2.5A at 30VDC
- Maximum surge: 18 feet per second (FPS)
- Temperature: 0°C to 68°C
- W. pressure: 450 psi
- Certificate: UL Listed/ FM Approved
- Contact ratings: 8A at 125/250 VAC, 3A at 24VDC, 2.5A at 30VDC
- Maximum surge: 18 feet per second (FPS)
- Temperature: 0°C to 68°C
- W. pressure: 450 psi

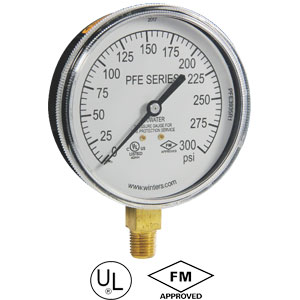

Pressure gauge
- Certificate: UL Listed
- Dial diameter: 4″ (100mm)
- Connection: 1/4″ NPT
- Full scale value: 300 psi
- Accuracy: 3% – 2% – 3% as ASME Gr. B
- Temperature: -40°C to 65°C
- Certificate: UL Listed
- Dial diameter: 4″ (100mm)
- Connection: 1/4″ NPT
- Full scale value: 300 psi
- Accuracy: 3% – 2% – 3% as ASME Gr. B
- Temperature: -40°C to 65°C
Pressure Reducing Valve
- Certificate: UL Listed/ FM Approved
- Connection: Flanged as ANSI B16.42
- Temperature: Water, max 82°C
- W. pressure: Class 150/ class 300
- Certificate: UL Listed/ FM Approved
- Connection: Flanged as ANSI B16.42
- Temperature: Water, max 82°C
- W. pressure: Class 150/ class 300
Foot valve
- Certificate: ISO
- Connection: Flanged as ANSI B16.5/ EN 1092-2
- Test: 348/ 544 psi (2.4/ 3.75 Mpa)
- Temperature: EPDM, -20°C to 110°C/ NBR, -10°C to 80°C
- Certificate: ISO
- Connection: Flanged as ANSI B16.5/ EN 1092-2
- Test: 348/ 544 psi (2.4/ 3.75 Mpa)
- Temperature: EPDM, -20°C to 110°C/ NBR, -10°C to 80°C
